RF over Fiber Products

Pro-grade RF over Fiber transmitters and transceivers for Satcom, GPS, WiMAX/LTE, DAS and more.

rfof_product-lineOur RF over Fiber link modules are trusted by industry leaders and are very cost-effective. Most of these links (one-way and two-way) can theoretically work for most applications, such as Satcom, GPS, WiMAX/LTE, and DAS, but we do have recommendations for their optimum application. Please see the “Recommended Applications” column below. All of our RFoF links are carefully made in the U.S.A. and come with a one year warranty and one year of engineering support.

And if you don’t find exactly what you’re looking for, or if you’re a manufacturer looking to integrate our solutions, please don’t hesitate to use the “Contact Engineering” tab below.

Family of RF over Fiber Links:

rfof_components
rfof_modules-standalone2
rfof_modules-rack-subsystems

Model (click for more info) Recommended Applications Datasheet
>> OZ101 – Mini (PCB mount) link Radiation pattern testing, Avionics, Satcom pdf
>> OZ510 – Long reach link DAS, Satcom, Cell Repeater, GPS, analog signal distribution, delay line pdf
>> OZ516 – Ultra-broadband (> 6Ghz) Link WiFi 802.11g/n/ac, analog signal distribution, delay line, phase array radar pdf
>> OZ600 – Standard RFoF TRx (2-way) DAS, Satcom, Cell Repeater, GPS, analog signal distribution, delay line pdf
>> OZ810 – Optimum RFoF TRx (2-way) DAS, Satcom, Cell Repeater, GPS, analog signal distribution, delay line pdf
>> OZ816 – 6GHz Ultra RFoF TRx (2-way) wifi 802.11g/n/ac, analog signal distribution, delay line, phase array radar pdf
>> OZ1603 – 3GHz Premium TRx (2-way) temperature stable analog signal distribution, delay line, antenna remoting pdf
>> OZ1606 – 6GHz Premium TRx (2-way) temperature stable analog signal distribution, delay line, antenna remoting pdf
>> DVB-T & Audio Link Digital Video Broadcasting-Terrestrial transport, microphone remoting, Direct TV SWM extender pdf
>> GPS over Fiber Link L1, and L2 GPS link pdf
>> Maritime VSAT over Fiber Link VSAT, Satcom, Oil and Gas Platforms, Shipboard Comm pdf

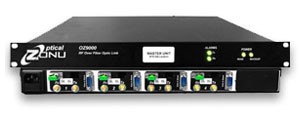

>> OZ9500 – RFoF Subsystem Multi channel/band RF distribution PTP or PTMP, CWDM single fiber interfacility links pdf
>> OZ9800 – RFoF Subsystem Multi channel/band RF distribution PTP or PTMP, CWDM single fiber interfacility links pdf
>> CWDM RFoF GbE Data Link pdf
>> Modular 1U Subsystems Multi channel/band RF distribution PTP or PTMP, managmenet pdf
If you’re looking to integrate our products into your existing systems/products, or if you’re looking to get a custom solution created, our engineers are always happy to hear from you.

Just send us a message below or, if you’d prefer, call us: +1 (818) 780-9701

Converting analog RF signals into light, then transporting the optical signal over fiber optic cable, is a complex process which requires a high degree of technical know-how and expertise. Incoming RF signals from the antenna or signal source are fed into Optical Zonu’s RF over Fiber Transmitter/Transceiver Module via the 50 Ohm RF connector. The Module contains RF signal conditioning and provides complex impedance matching between 50 Ohm input impedance and the Laser, Laser Bias Control, APC, Monitoring and Alarm electronics. The Transmitter Module utilizes an Intensity Modulation scheme to convert RF signals into light. This modulated light is then transported through an optical fiber to the Optical Receiver Module. The Receiver Module converts the modulated light back into an RF signal. The recovered RF signal is again complex impedance matched and amplified before it becomes available at the output of the Receiver Module.
