Dual Fiber

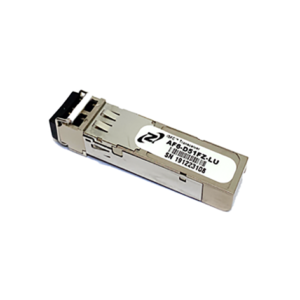

Dual-Fiber Micro-OTDR Data Transceiver

Overview:

The iDFC Configuration is the one to choose for the Optical Supervisory Channel (OSC) applications where conventional Dual-Fiber SFPs are widely deployed.

Benefits:

• Dual-Fiber, Conventional CWDM – iDFC
• Fast Ethernet, Gigabit Ethernet, 10 G Ethernet, CPRI
• 65 dB DR for Micro-ODTR
• Duplex LC/UPC

Features:

• The iDFC Configuration is the one to choose for the Optical Supervisory Channel (OSC) applications where conventional Dual-Fiber SFPs are widely deployed.
• A drop-in replacement fro existing SFPs, with the Micro-OTDR added to monitor the high speed, high revenue, DWDM trunks, which require the OSC function.
• For Wireless Back-Haul, Front-Haul and Core Network Applications, substituting the Micro-OTDR SFPs for the existing legacy units, adds an additional physical layer monitoring capability previously unavailable to these numerous, critical optical network links.

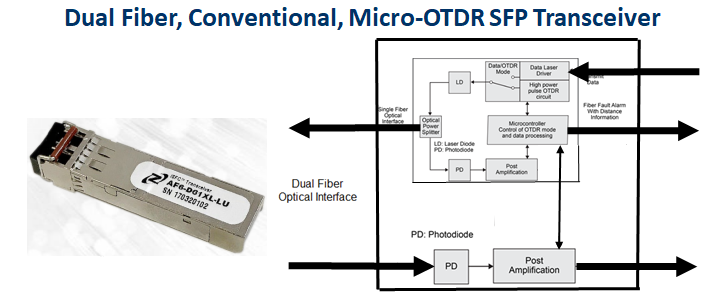

Block Diagram:
