Single Fiber

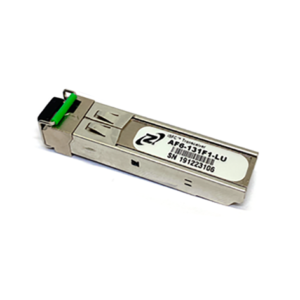

iSFC® SFSW SFP Micro-OTDR Data Transceiver

Overview:

The iSFC® Configuration is the one to choose for CWDM access Networks and Wireless Front Haul, where its advantages, compared to the conventional Dual-Fiber Configuration, of using only Half the Optical Fibers, Half the Optical Passives and Half the Optical Connectors, all come into play.

Benefits:

• Single-Fiber, Single Wavelength, Full Duplex, CWDM – iSFC®
• Fast Ethernet, Gigabit Ethernet, CPRI
• 60 dB DR or 55 dB DR for Micro-OTDR
• SC/UPC and LC/UPC

Features:

• The iSFC® Configuration is the one to choose for CWDM access Networks and Wireless Front Haul, where its advantages, compared to the conventional Dual-Fiber Configuration, of using only Half the Optical Fibers, Half the Optical Passives and Half the Optical Connectors, all come into play.
• The full range of the ITU CWDM Grid is supported, plus 1625 nm for monitoring purposes. With 1625, you can monitor a fully utilized CWDM optical fiber link without the need to “waste” one of the data channels.
• Our exclusive RIO® feature allows these SFPs to be used in any optical network, without the limitation of legacy SFSW SFPs, which suffer from optical loopback caused by reflections of their own transmitted signals.

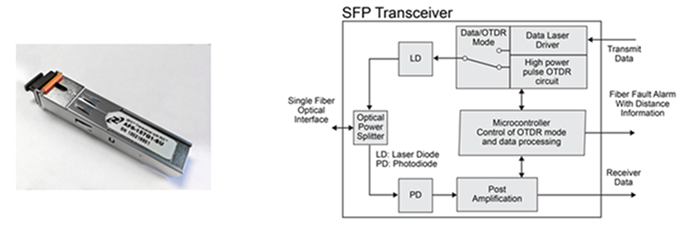

Block Diagram:
