Satellite Communication

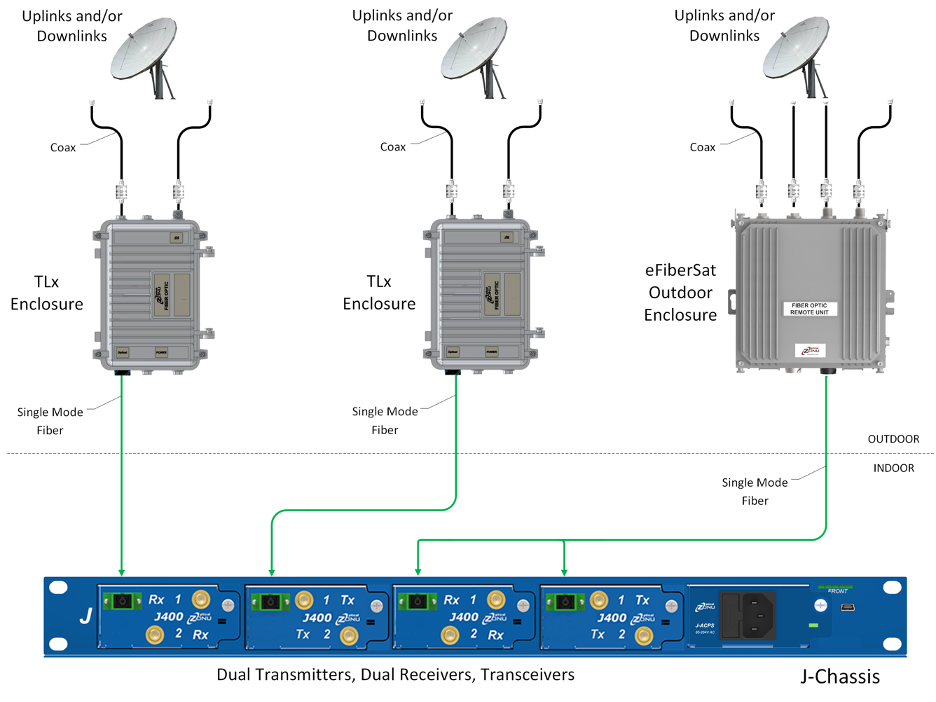

SATCOM
- 10 kHz to 50 GHz Fiber Optic Transport Between Satcom Modem and Antenna
- LNB and BUC control and power (13/18V w/wo 20kHz)
- Full RFoF Monitoring (SNMP, GUI, NMS)
- Wide Operating Temperature Range
- 1310 nm, 1550 nm, CWDM, DWDM Wavelengths
- High SFDR

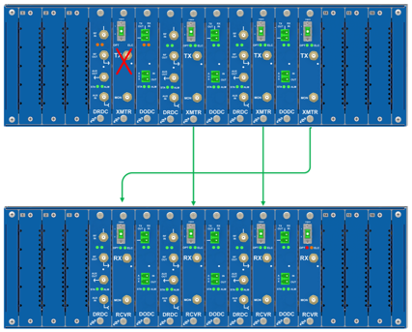

J3U Modular System - Redundancy
- N+1, 1+1 Redundancy Options
- Redundant Fiber Options
- Site Diversity
- 30 MHz to 6 GHz
- -20°C to +50°C Operating Temperature Range
- Hot Swappable
- Module is Controllable and Monitored via SNMP/Web/GUI
- Occupies one of sixteen module slots in J3U chassis

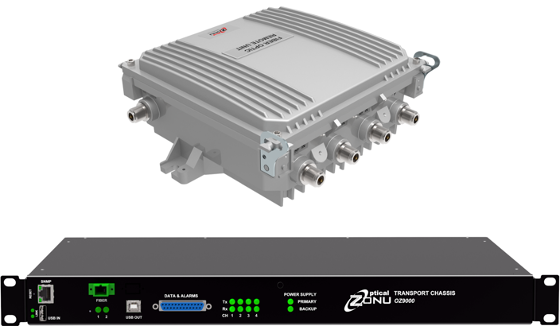

eFiberSat
- 30 MHz to 3 GHz Fiber Optic Transport Between Satcom Modem and Outdoor Unit (4 GHz and 6 GHz Bandwidths Available)
- -20°C to +60°C Operating Temperature Range
- IP-67 Rated Outdoor Unit
- J3U or 19” 1RU Rack Mounted Indoor Unit
- 1310 nm, 1550 nm, CWDM Wavelengths
- High SFDR
- Low Phase Noise Reference Clock Distribution
- Automatic Optical Power Control
- Local LEDs and Dry Contact Alarms (Indoor Unit)
- SSH CLI, HTTP Web UI, Managed RFoF Graphical User Interface (GUI) and SNMP v2 and v3 for Remote Monitoring
- Uncooled DFB Lasers
- Lasers Conform to Class 1 Emission Level Per CDRH and IEC-825 (EN 60825) Standards

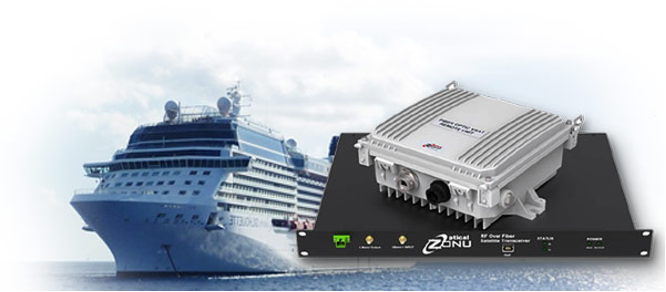

Maritime VSAT Link
- Ruggedized Chassis
- 25 MHz to 3 GHz Bandwidth
- 0°C to +65°C Operating Temperature Range
- IP–67 Rated Outdoor Unit
- 19” 1RU Rack Mounted Indoor Unit
- Low Phase Noise 10 MHz Transport
- 15 dB L–Band Gain
- Gain Adjustment, 30 dB
- 1310 nm, 1550 nm, CWDM Wavelengths
- High SFDR, 110 dBm–Hz
- SSH CLI, HTTP Web UI, Managed RFoF GUI and SNMP v2 and v3 for Remote Monitoring
- Uncooled DFB Lasers

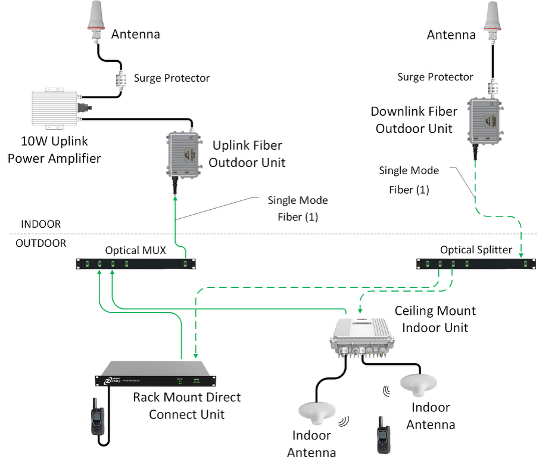

Iridium & Globalstar
- System is Transparent to any Approved Iridium Equipment
- Environmentally Hardened IP-67 Outdoor Enclosures House Active RF and Fiberoptic Components
- 19” 1RU Chassis Supports Connection of up to Four Phone/Cradles
- Support for Direct Connection of Phone Docking Stations to Indoor Unit Over Copper
- Ceiling Mount Indoor Termination Supports Re-Radiating Indoor Antennas
- GNSS distribution can be added
- Support for Voice and Data Modems
- Fiber Cabling Supports Location of Indoor Equipment up to 1 km Away From Outdoor Line-of-Sight Antennas
- Local LED and Dry Contact Alarms
- Dual Universal AC Power Supply
- Systems Available to Support Globalstar, Inmarsat, and Thuraya Requirements
- Lasers Conform to Class 1 Emission Level Per CDRH and IEC-825 (EN 60825) Standards
