Delay Lines

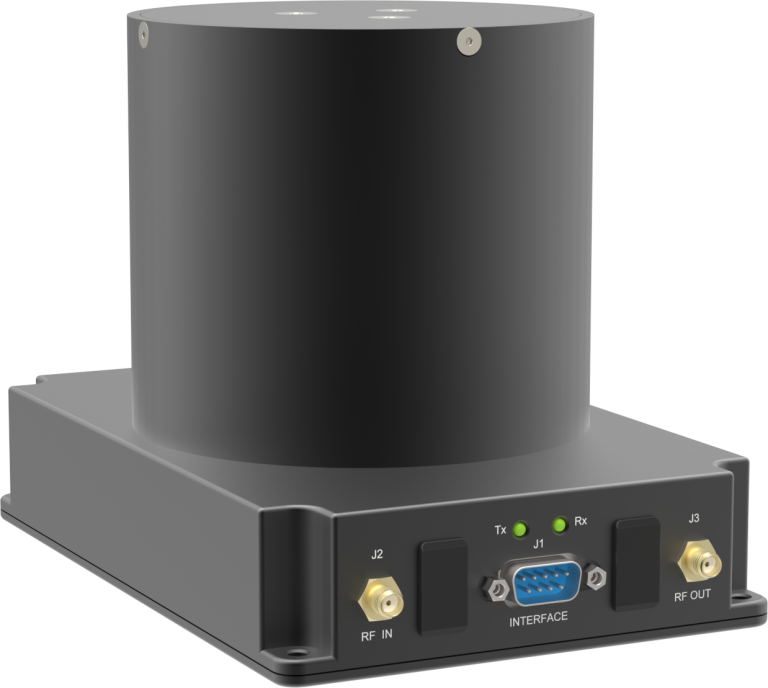

Integrated Fixed Delay Lines

  • RF Frequencies, 10 kHz – 50 GHz
  • Delays up to 110 μsec
  • -20°C to +55°C Operating
  • Temperature Range
  • High SFDR
  • Laser Diode and Photodiode Monitoring & Alarms
  • Laser Conforms to Class 1 Emission Level per CDRH and IEC-825 (EN 60825) Standards

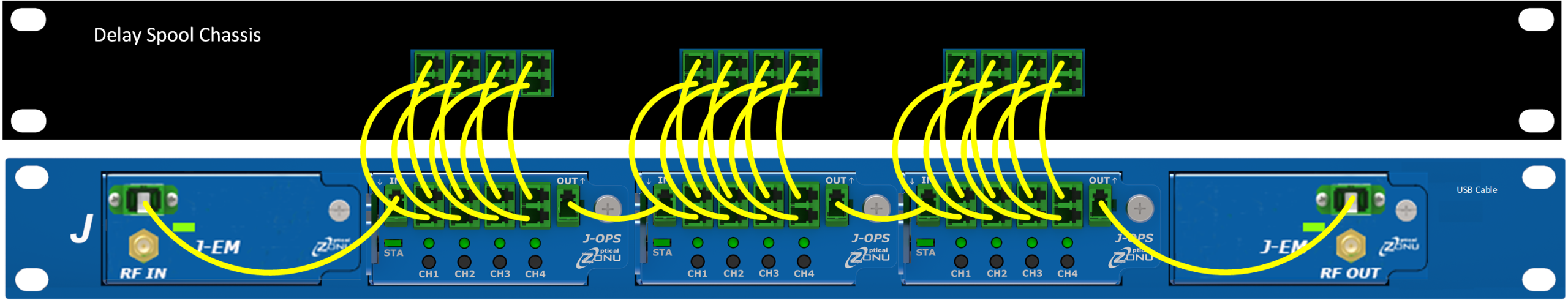

Switched Delay Lines

  • RF Frequencies, 10 kHz – 50 GHz
  • 0°C to +50°C Operating Temperature Range
  • 1 to 12 Bit Delay Resolution
  • Enable ultra fine delay resolution (up to 1 nsec) for short delays
  • Triple transit echo (TTE) < -80 dBc
  • Hot Swappable Optical Switch Modules
  • Hot Swappable RF Over Fiber Modules
  • Switching Controllable via SNMP/ Web/GUI/CLI

Adjust Delay Lines

  • Supports up to Four Tunable Delay Elements
  • 1RU, 19” x 15” Chassis
  • Each Delay Element Supports 0 – 660 psec Delay Tuning Range
  • 10 kHz – 50 GHz RF Frequency Range
  • 1310 nm, 1550 nm, CWDM Wavelengths
  • Remote Monitoring/Control via SSH, HTML, Embedded GUI
  • Application, SNMP v2 and v3
  • Local LED and Dry Contact Alarms
  • Dual Universal AC Power Supply
  • MTTF Exceeds 10 Years at 50°C
  • 0°C to 50°C Ambient Operating Temperature Range

Fiber Optic Delay Line FAQ

  • What is a fiber optic delay line?  It is a system to Tx and Rx that defines a delay between the input to the output based on the length of the fiber cable.  Optical switches enable control of the end to end optical path – hence making the delay line programmable.
  • How does a fiber optic delay line work?   Fiber optic delay line transforms Analog RF signals (from 100KHz to 60GHz and more) into an optical signal that propagates through controlled fiber optic cable.  The signal is “retrieved” demodulated by a RFoF receiver.  The quality of the analog signal is maintained by proper design of the Tx and the Rx section based on BW signal dynamic range and noise floor.  The travel time through the fiber (temperature independent) defines the delay to the RF signal .
  • What are fiber optic delay lines used for?  Fixed or controllable RF signal delay is utilized in RADAR system development, checking and calibration, simulation of RF communication systems and other lab and experimentation applications.
  • Why use RF over Fiber for signal delay?  The RFoF-based delay line offer wide range of accurate delay, repeatability, compact size, temperature independent operation and  with minimal group delay.  Signal integrity is maintained by proper design of the RFoF Tx and Rx.
