Modules up to 6 GHz

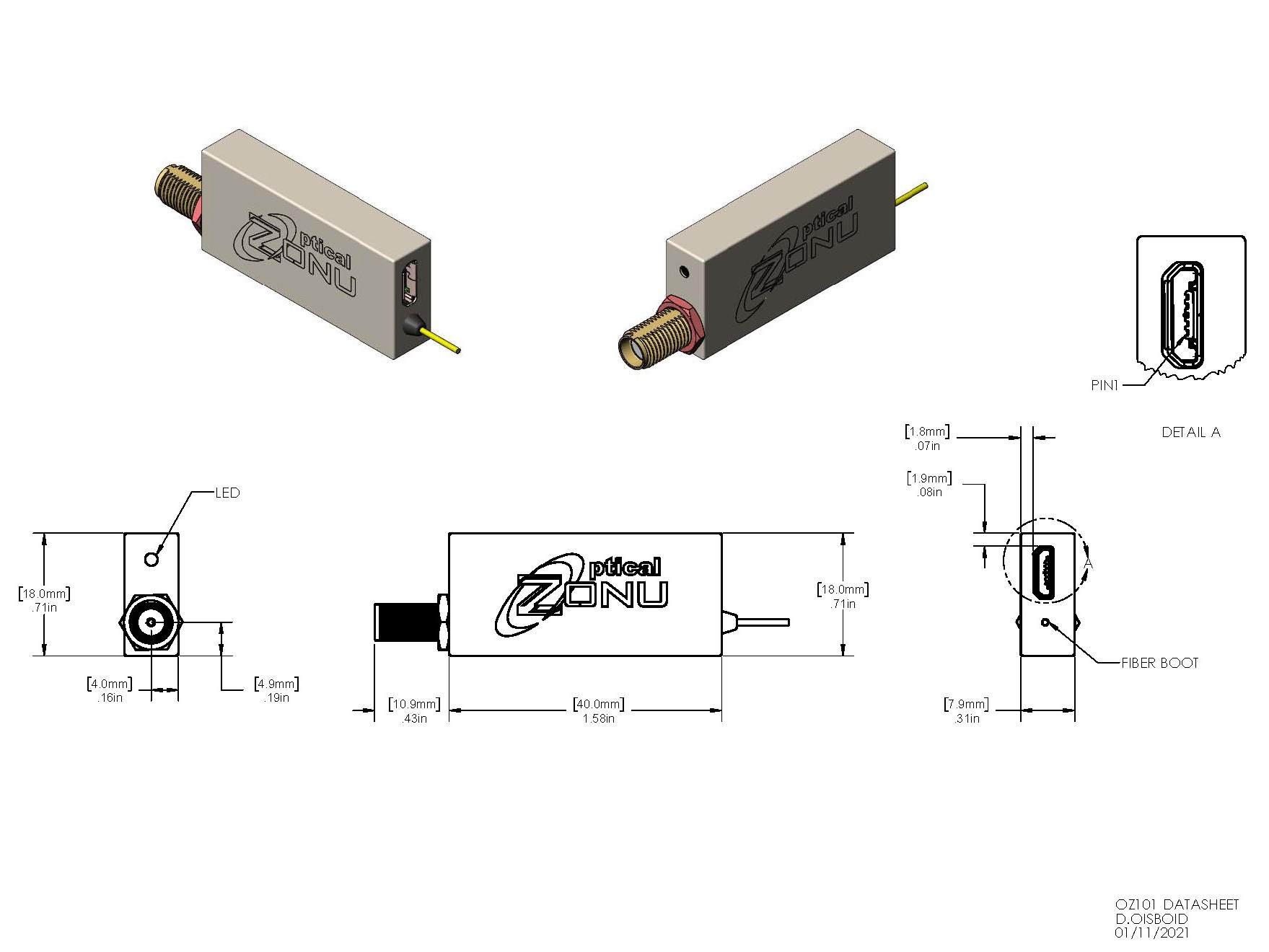

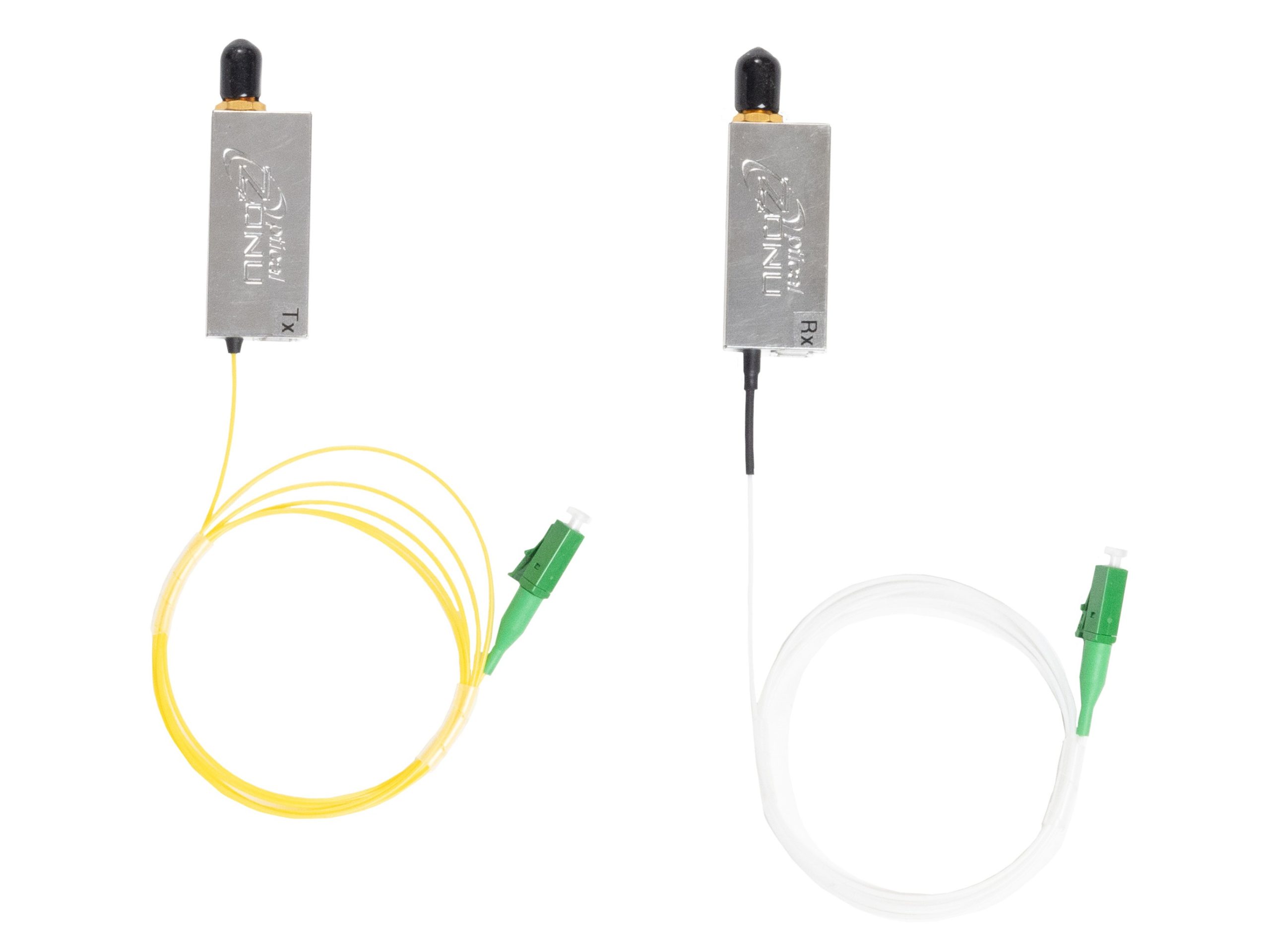

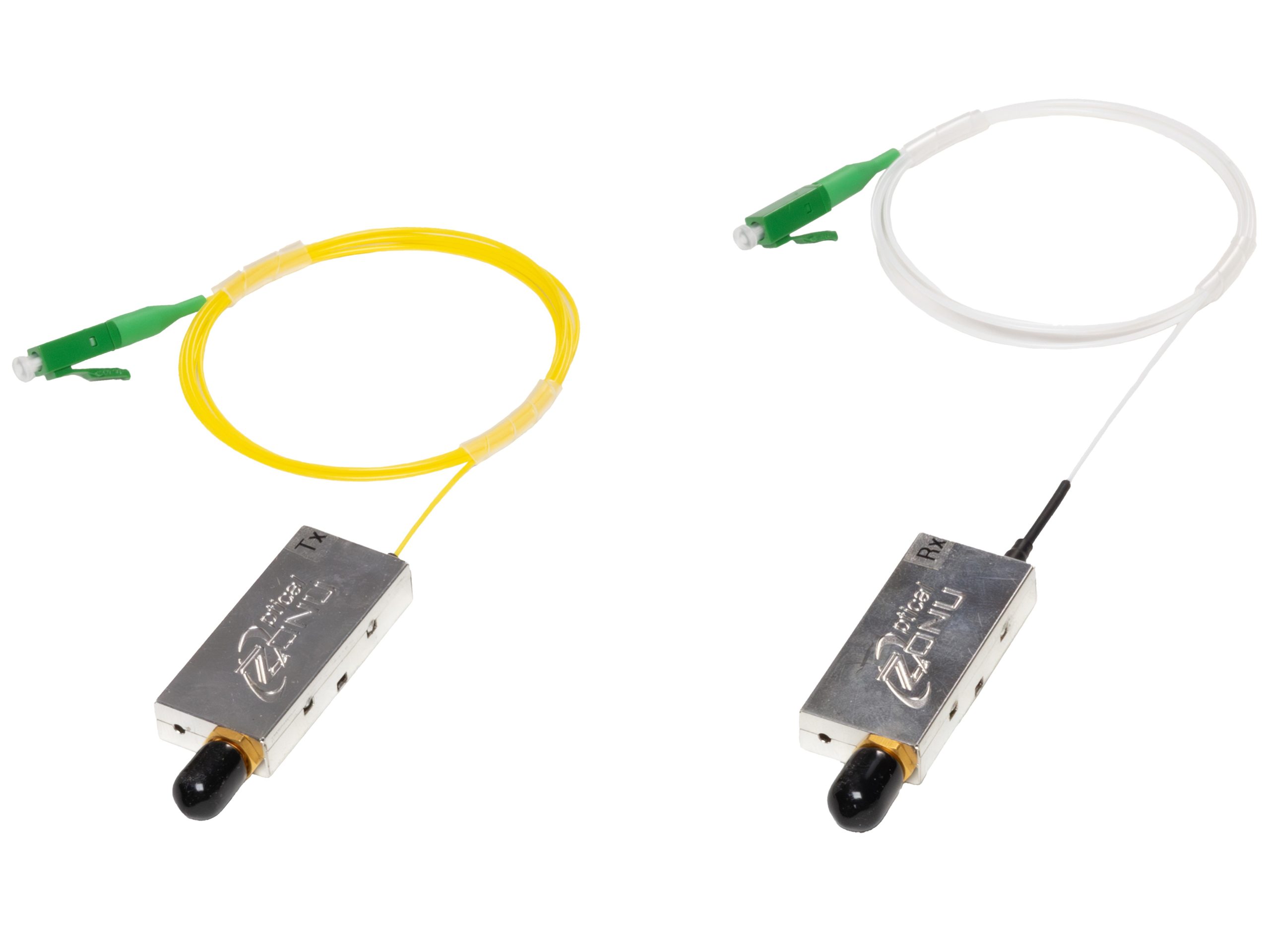

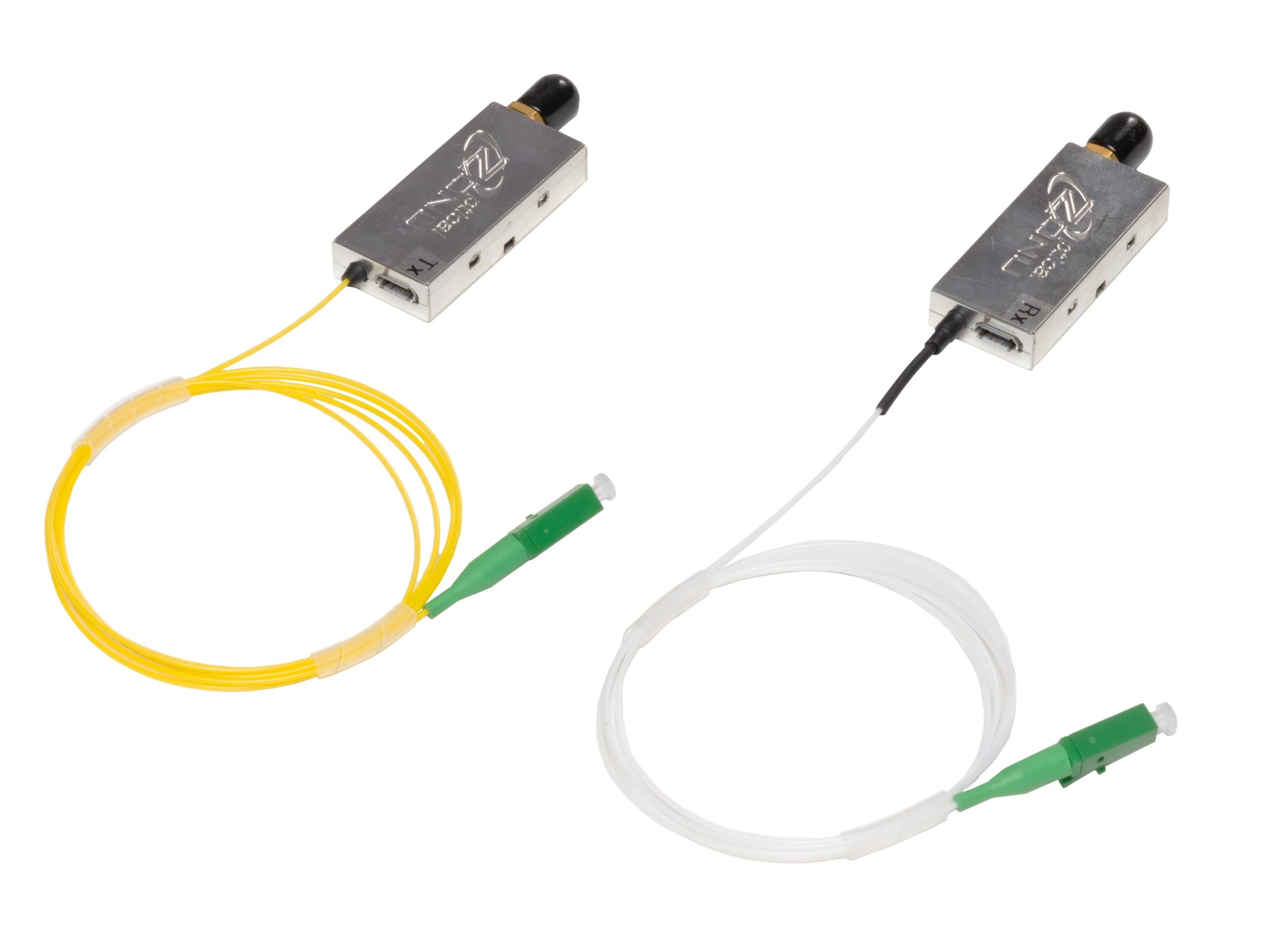

OZ10x
- 30 MHz to 6 GHz
- -40°C to +70°C Operating Case Temperature Range (1310 nm)
- Small Size, 0.7” x 1.6” x 0.3”
- Weighs 18.7 Grams (includes Fiber Pigtail)
- I2C Monitoring interface
- CWDM Wavelengths
- +5V Supply Voltage
- Uncooled Isolated DFB Lasers

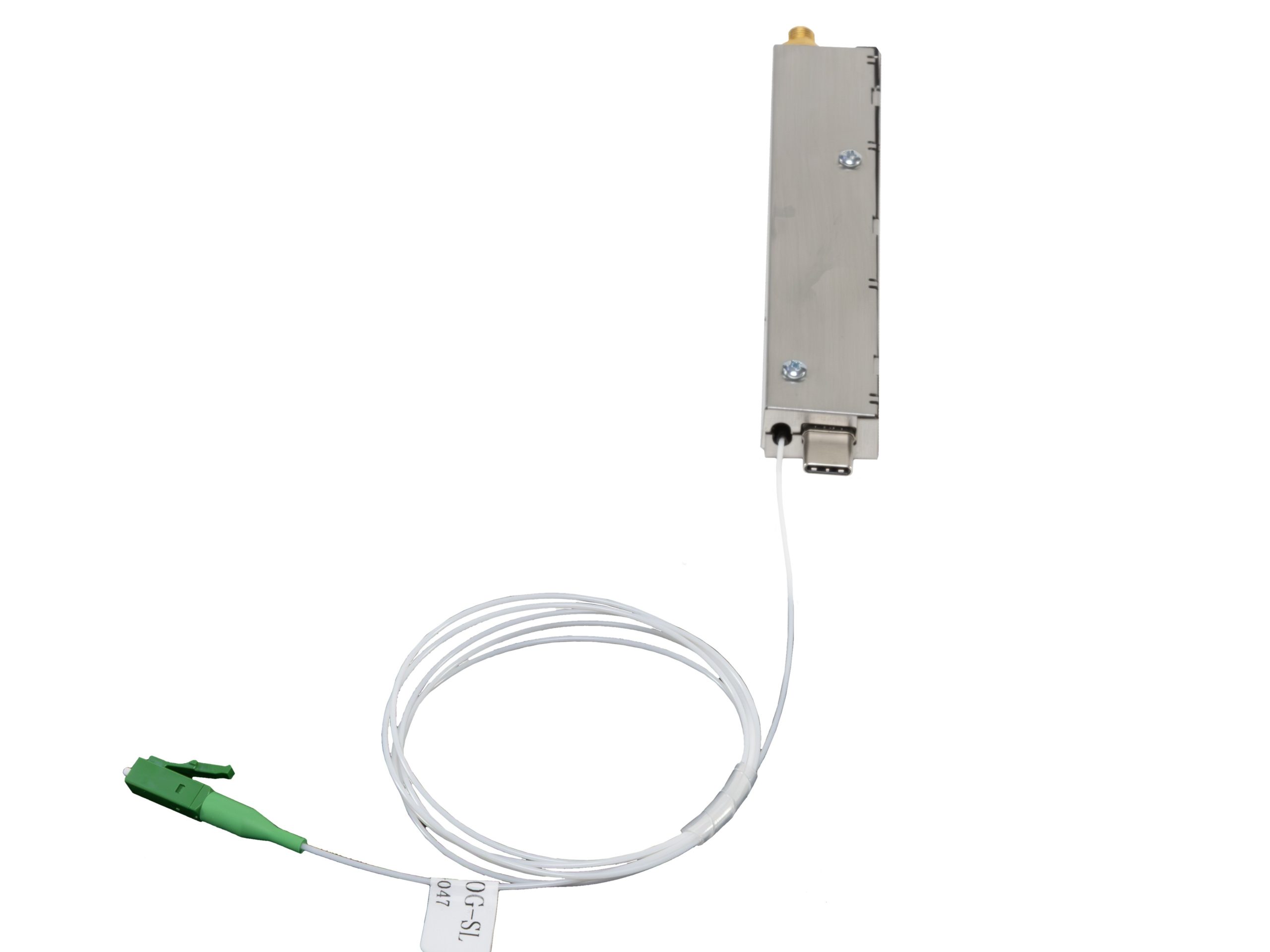

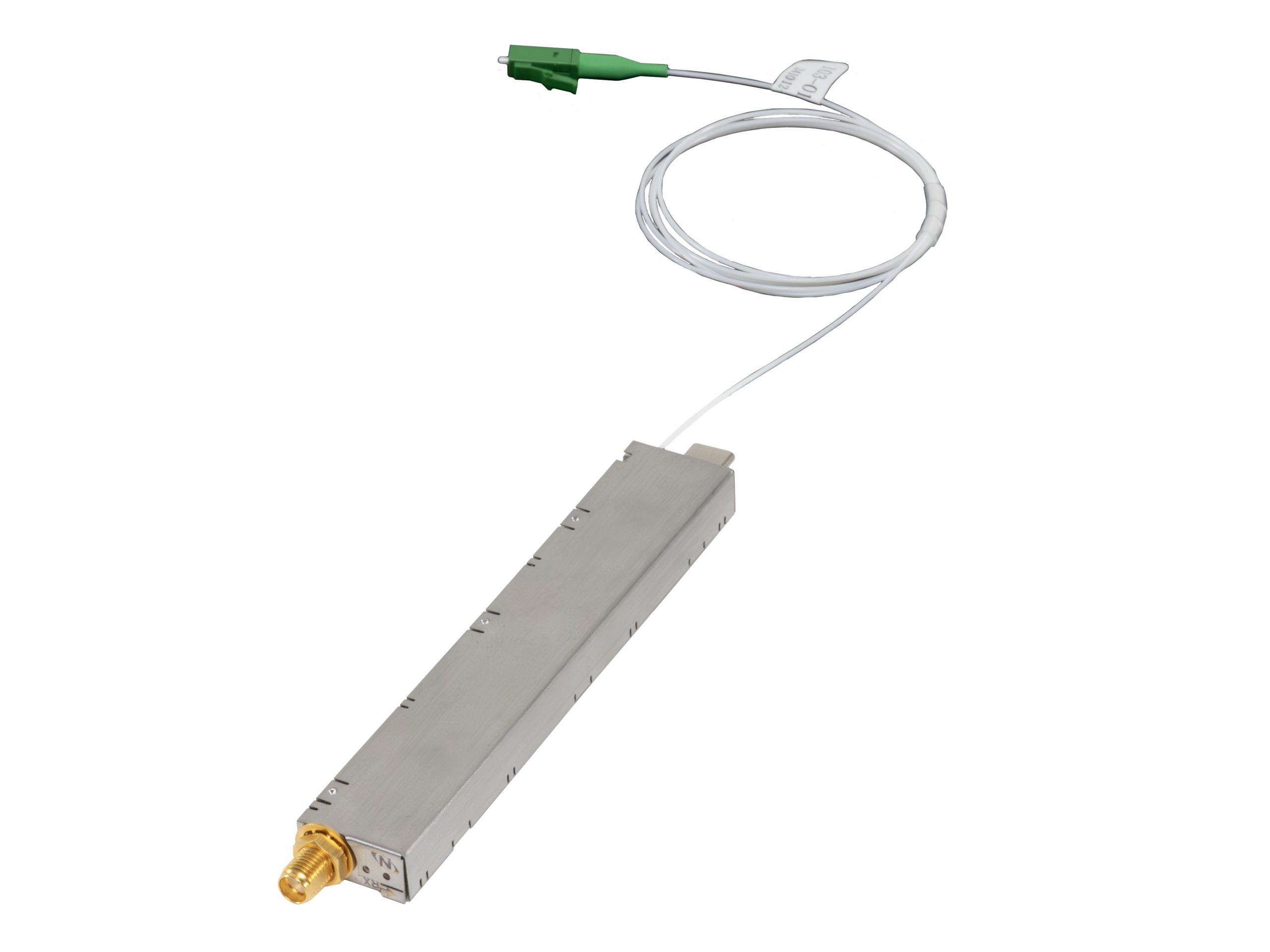

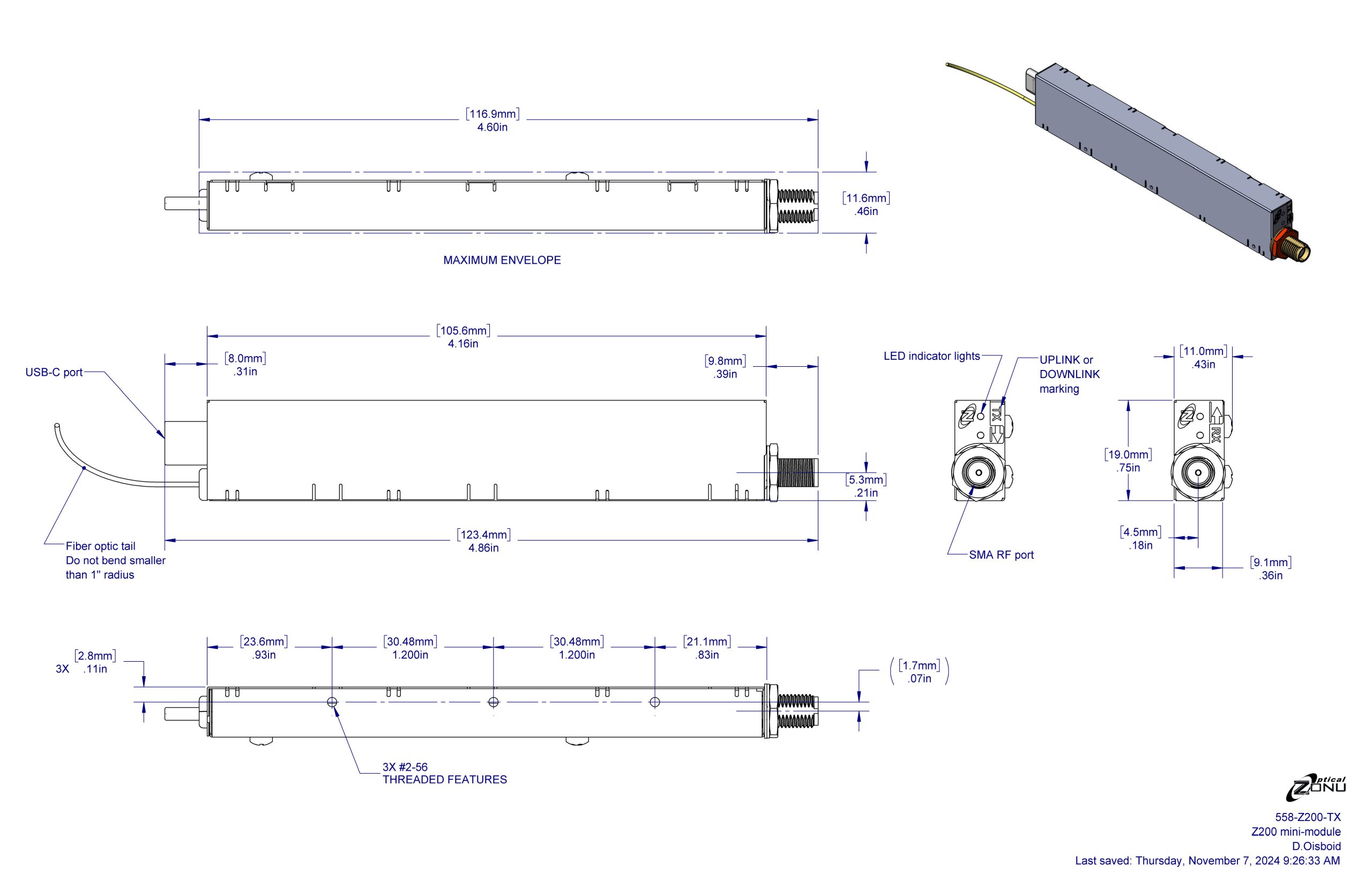

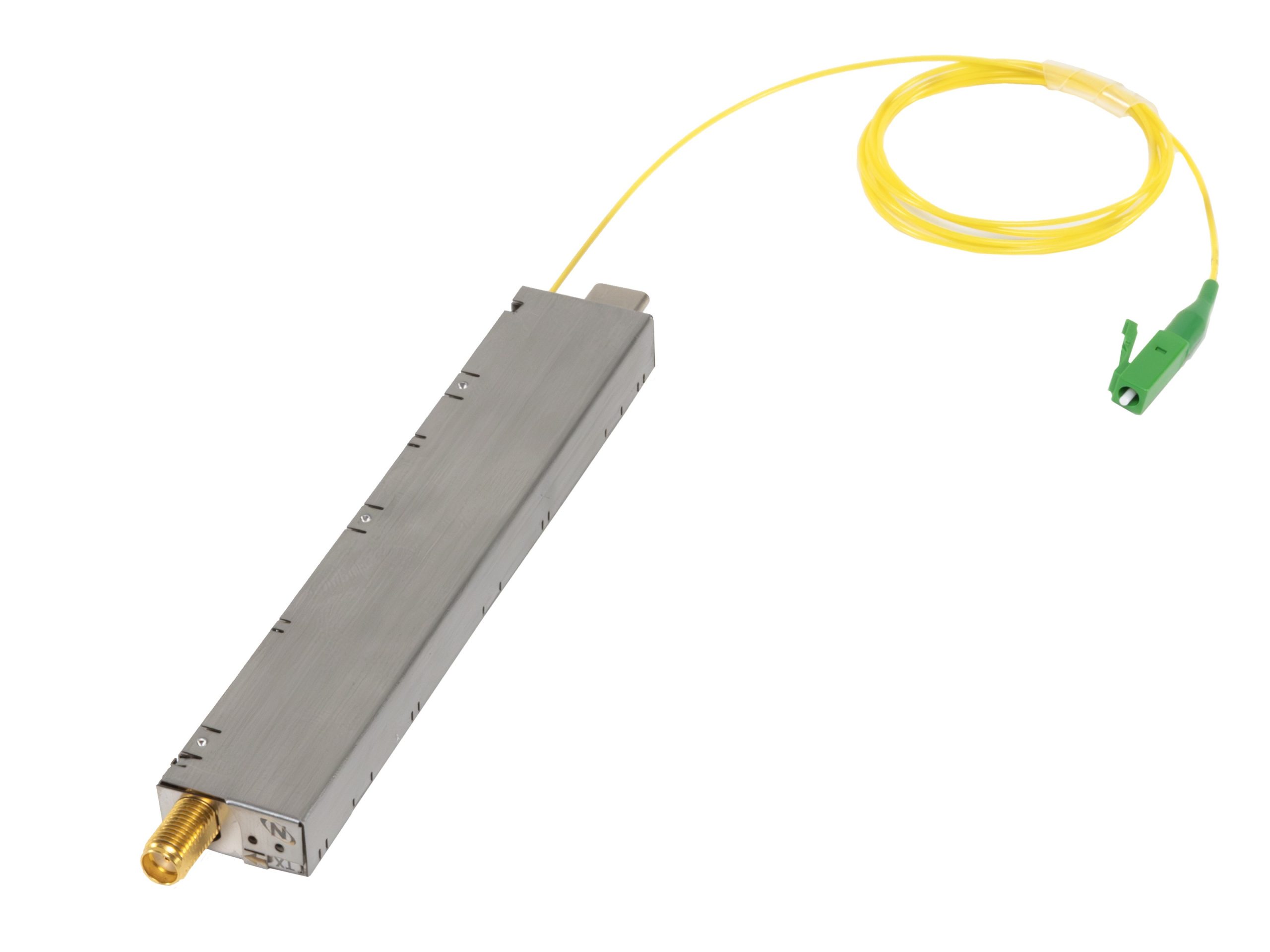

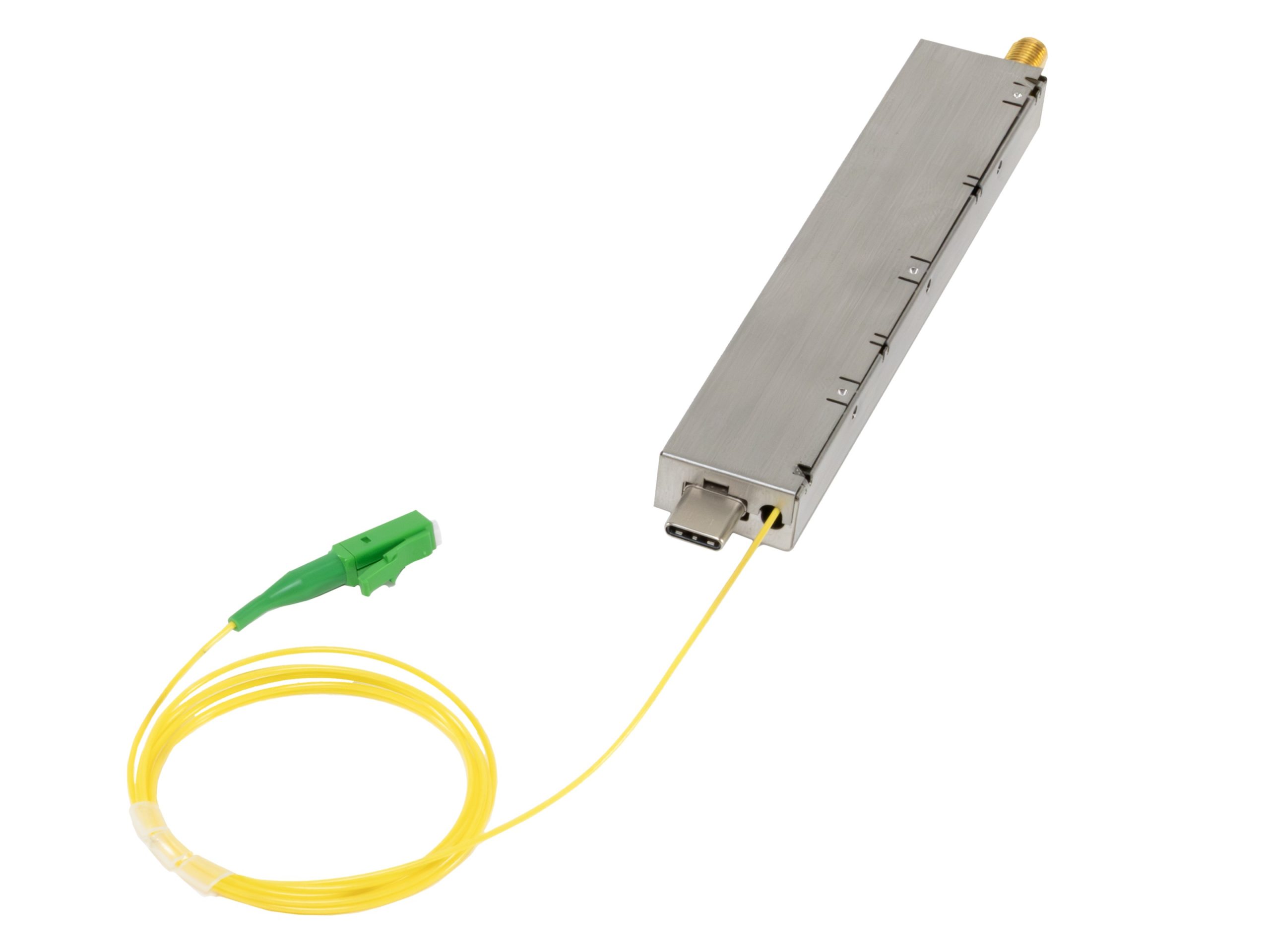

OZ20x
- 30 MHz to 6 GHz
- -40°C to +70°C Operating Case Temperature Range (1310 nm)
- Adjustable Transmitter and Receiver RF Gain (30 dB range each)
- Optional AGC in Transmitter and Receiver
- Digitally controlled via a microcontroller
- Interface via USB, I2C, or UART
- CWDM Wavelengths
- High SFDR
- Small Size, 19mm x 106mm x 9mm
- Weighs 32 Grams
- +5V Supply Voltage
- Uncooled Isolated DFB Lasers

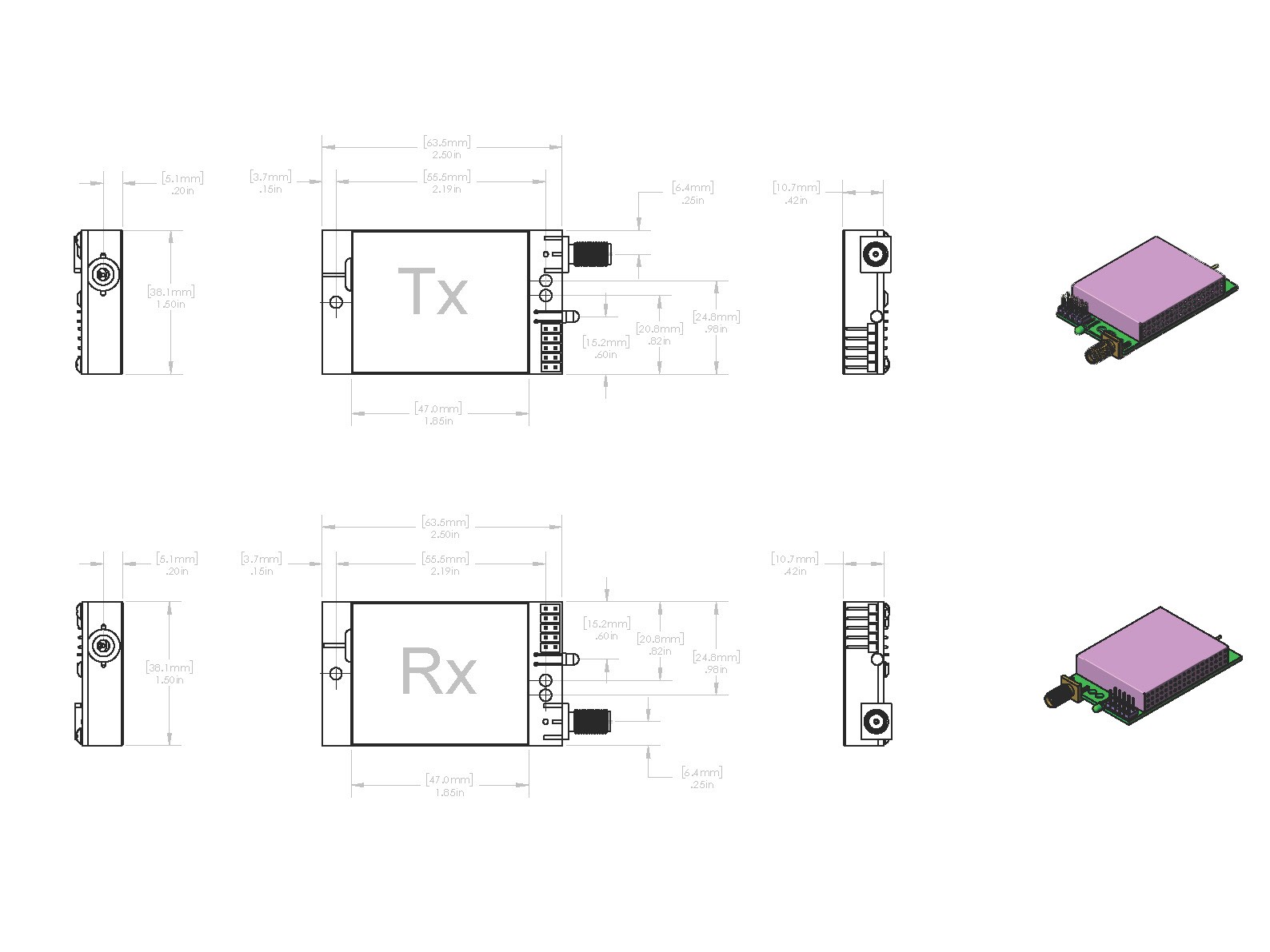

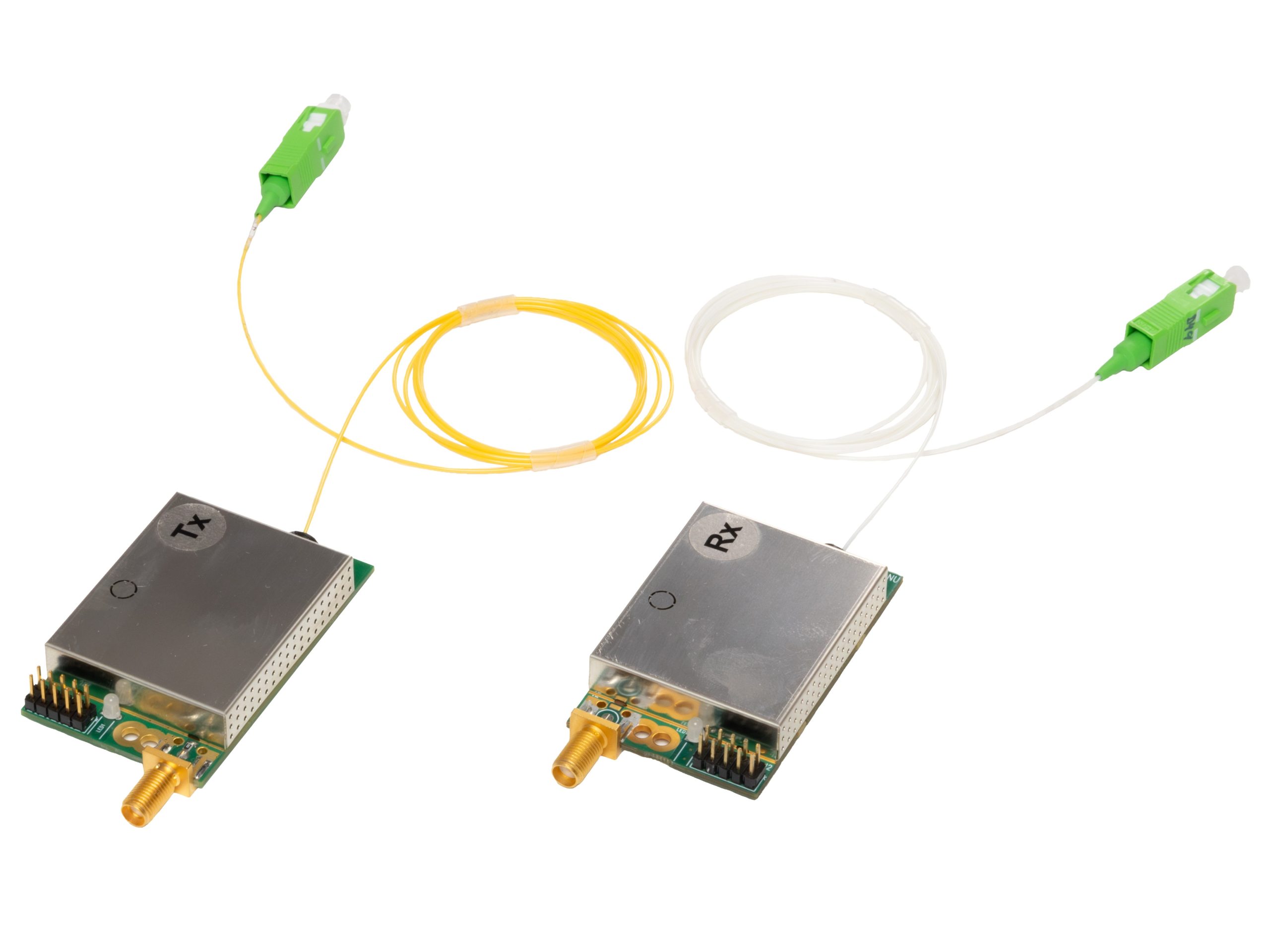

OZ51x
- 30 MHz to 6 GHz RF Bandwidth
- -40°C to +70°C Operating Case Temperature Range (1310 nm)
- Small Size, 1.5” x 2.5” x 0.6”
- CWDM Wavelengths
- High SFDR
- Local Monitoring Pins
- Optional Transport Down to 10 kHz
- Optional +20 dB LNA
- Uncooled Isolated DFB Lasers
OZ52x
- 30 MHz to 6 GHz
- Digital attenuators facilitate remote RF gain adjustment
- AGC (Automatic Gain Control)
- RF Power Monitoring
- Remote Monitoring via I2C Interface
- Supports +20 and +40 dB LNA Integration
- Optional Transport Down to 10 kHz
- Operates From 12 VDC
- CWDM

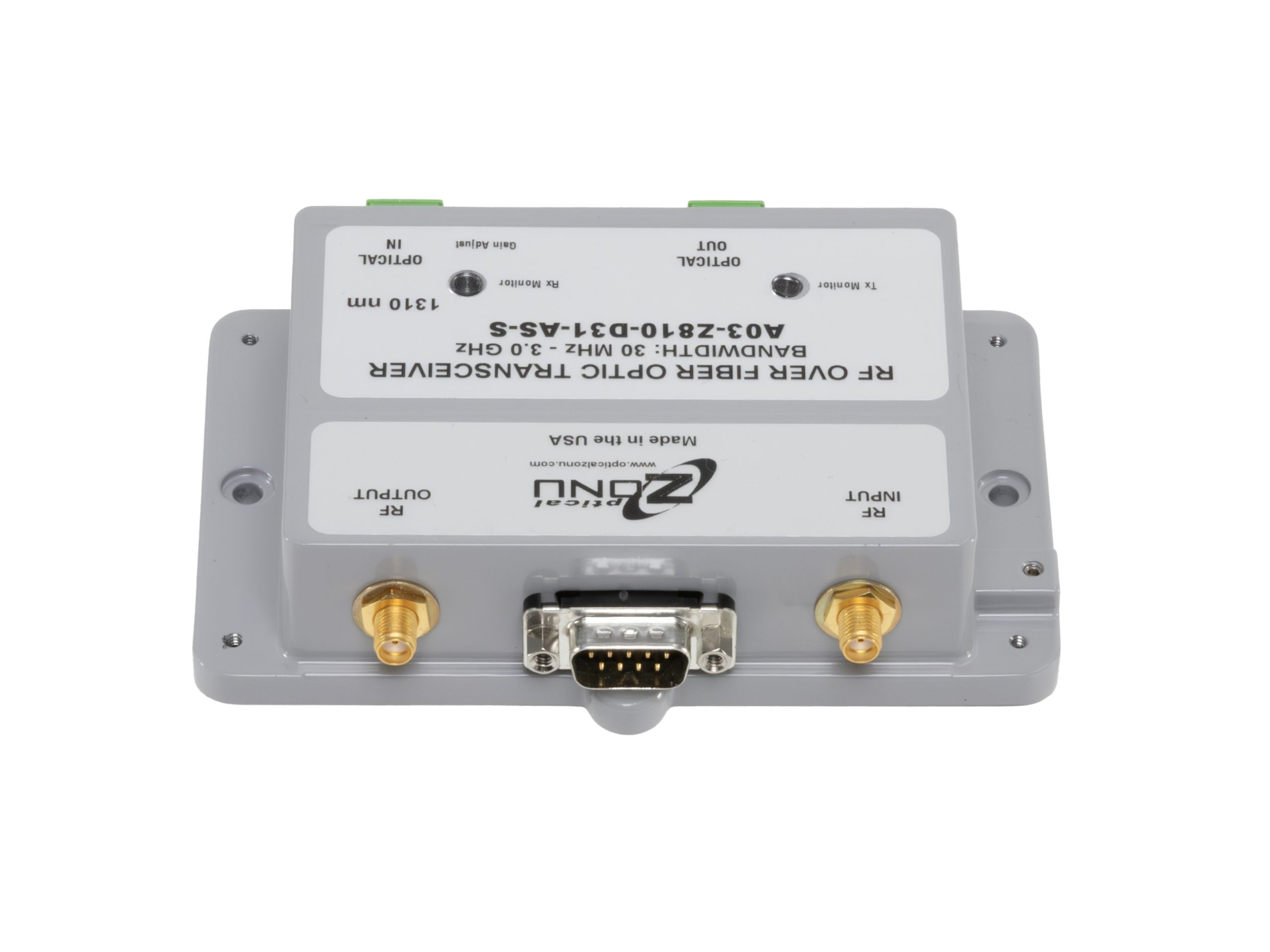

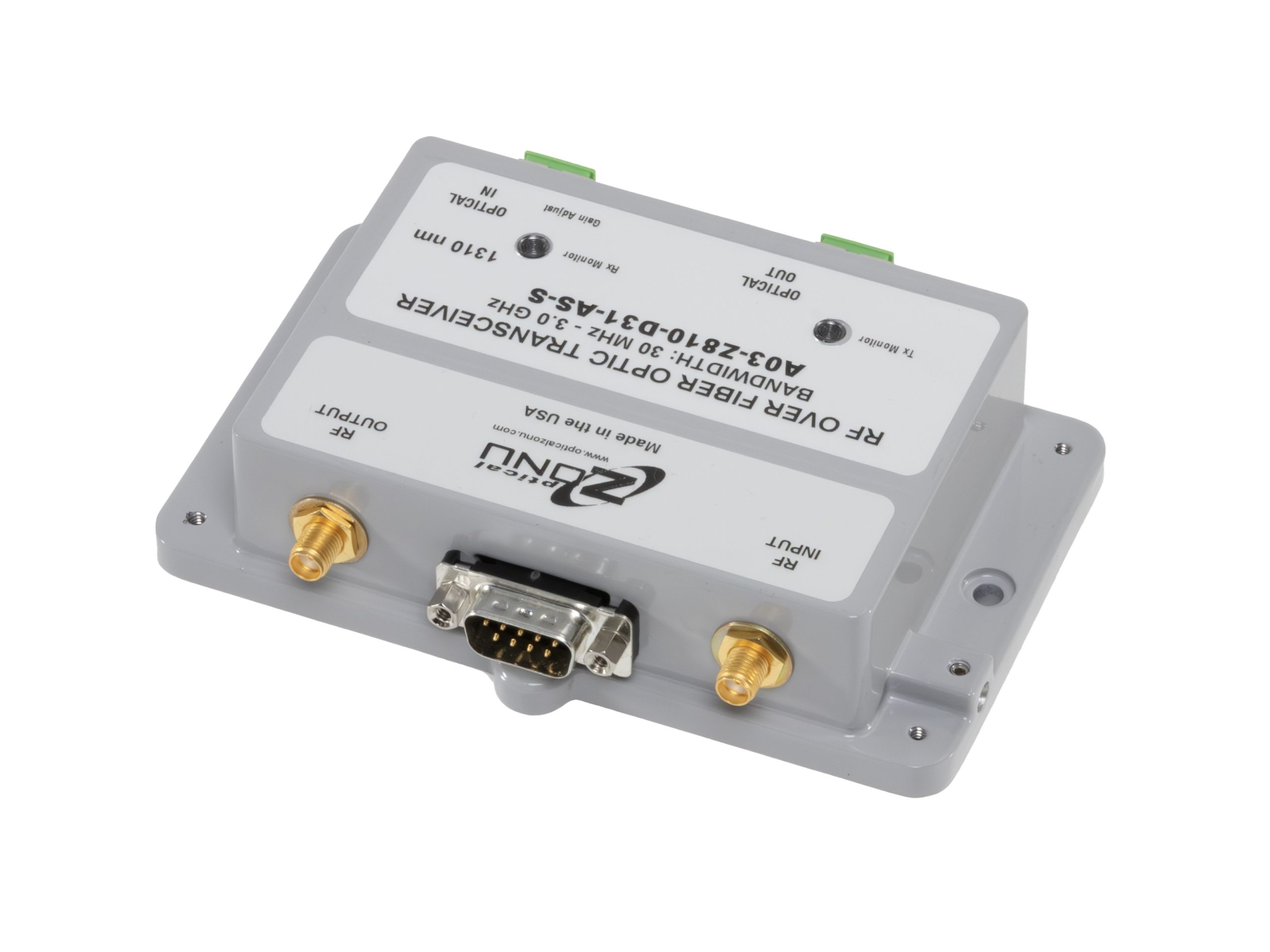

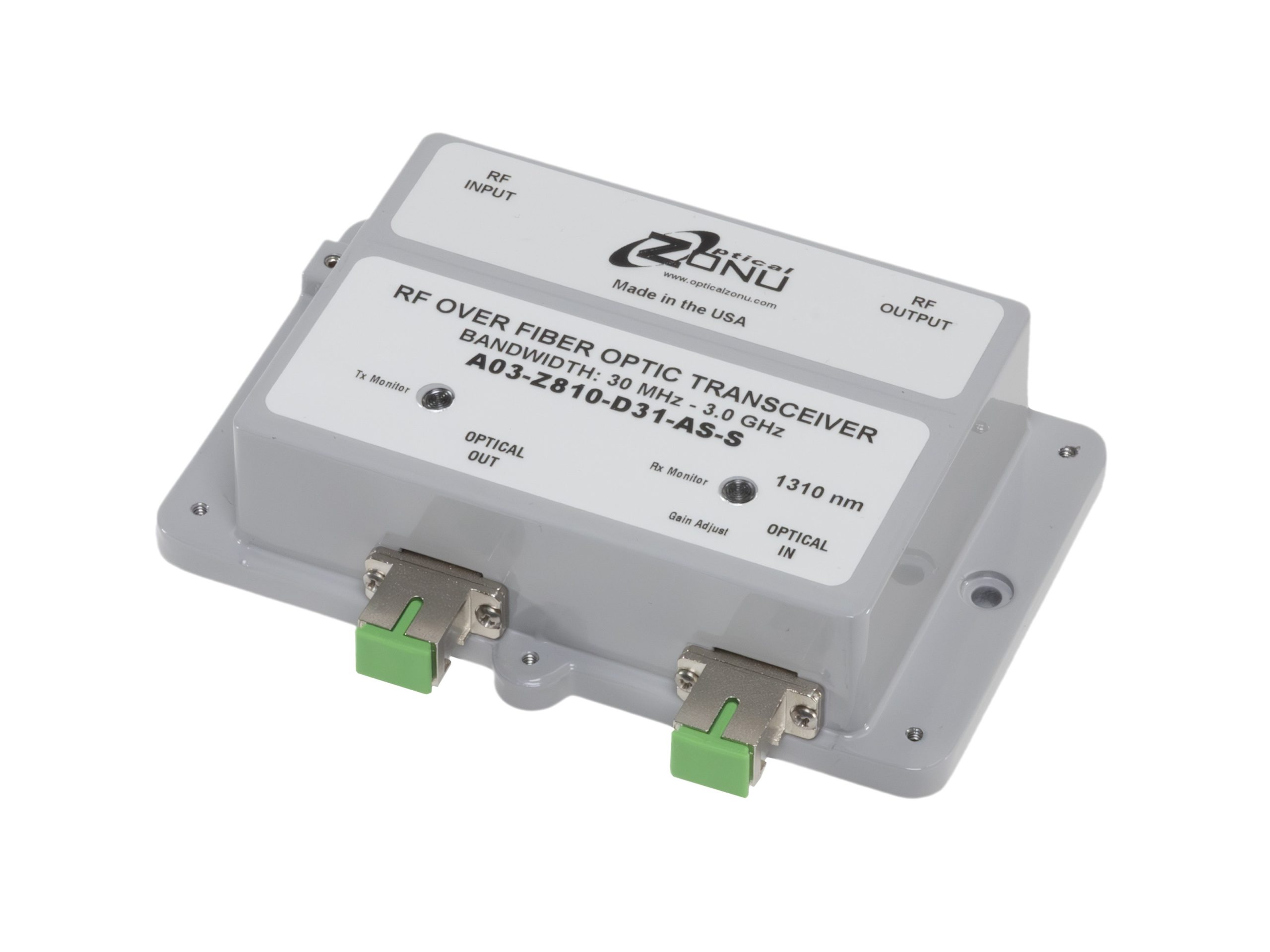

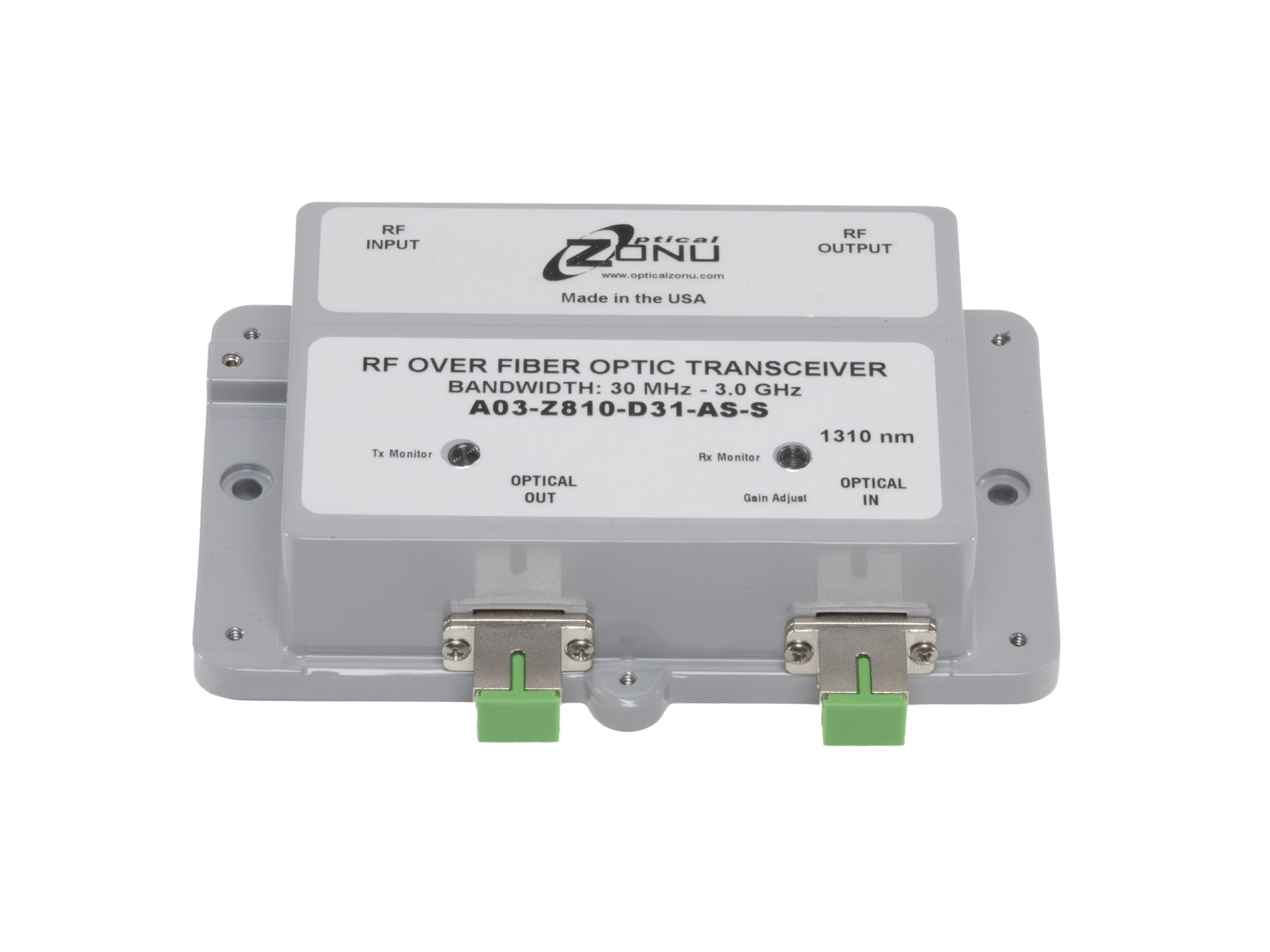

OZ81x
- 30 MHz to 6 GHz Transport
- -20°C to +75°C Operating Temperature Range
- RS232 Serial Data Transport (optional)
- Optical AGC (optional)
- Dual Transmitter and receiver options
- High SFDR
- CWDM Wavelengths
- Uncooled DFB Lasers

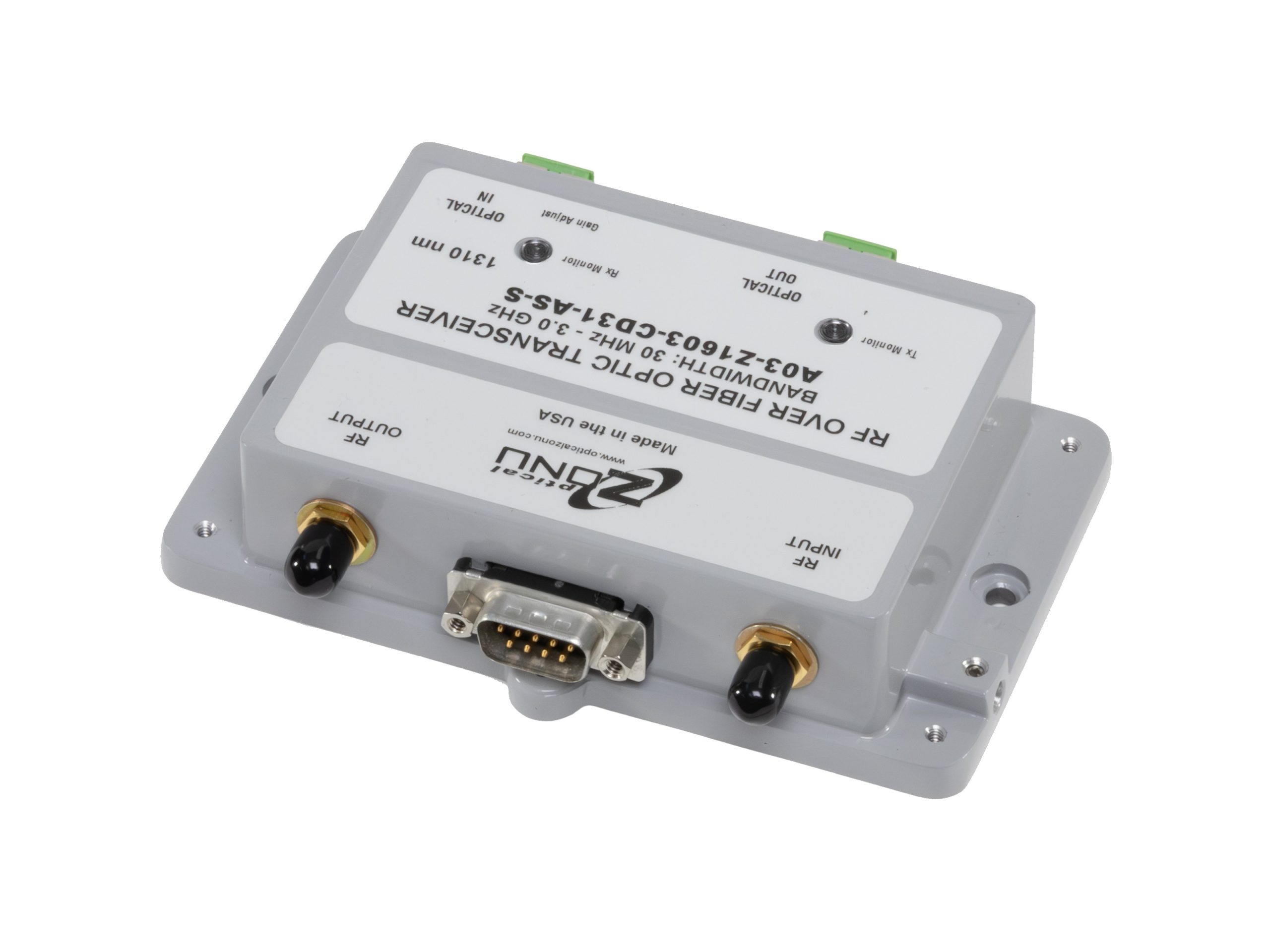

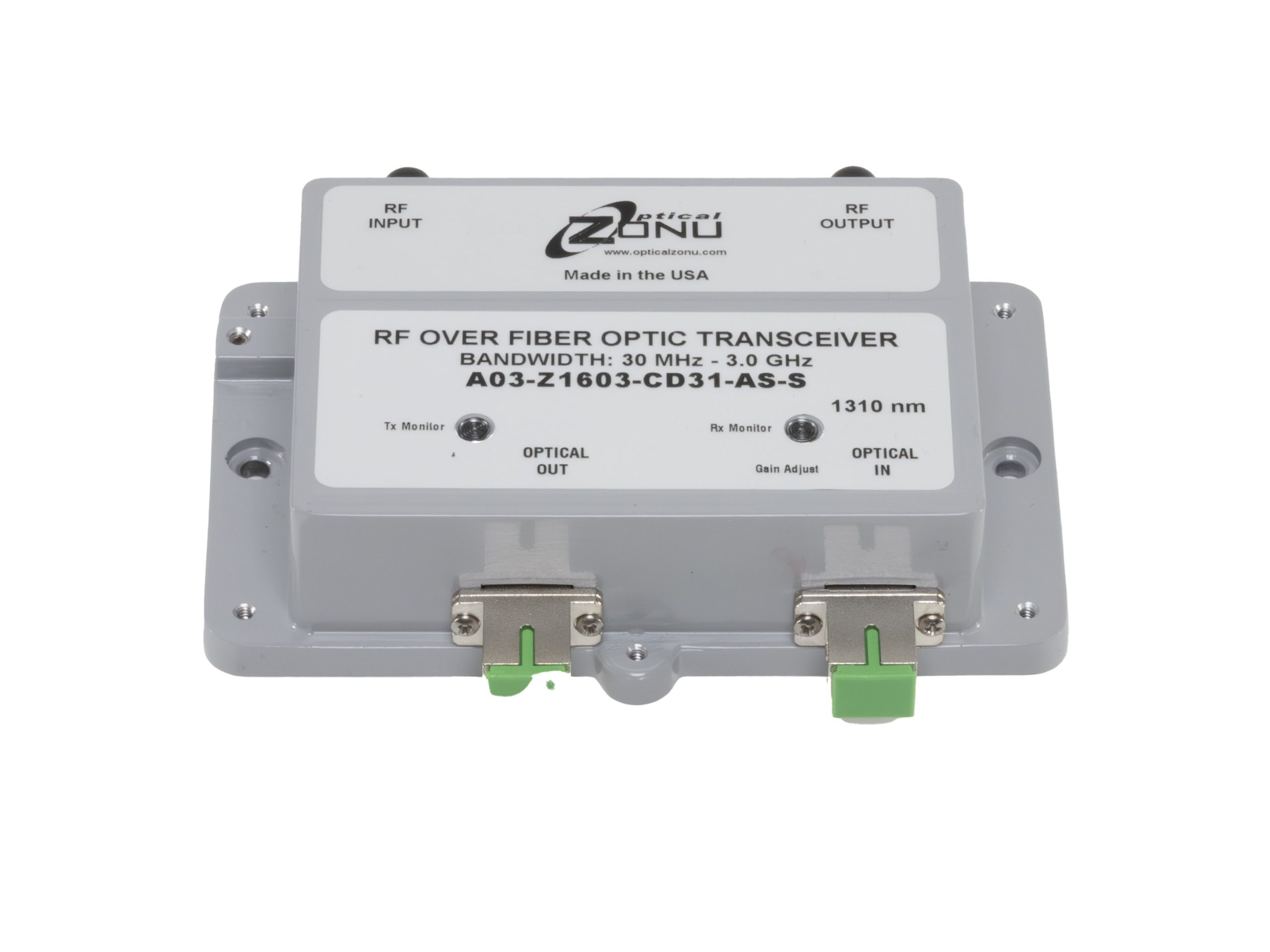

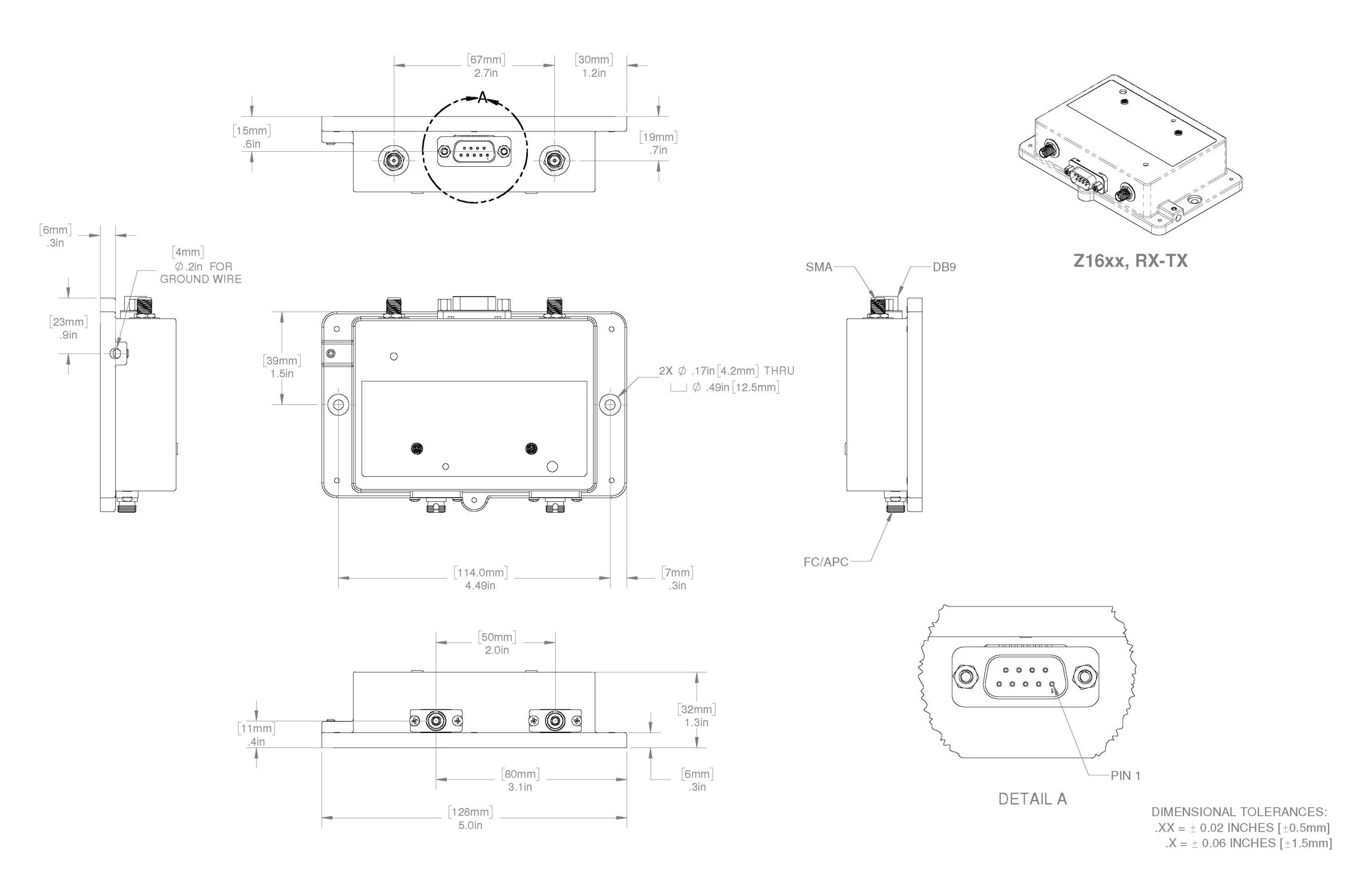

OZ16xx
- 30 MHz to 6 GHz (10 GHz Available)
- -40°C to +65°C Operating Temperature Range, Fixed RF Performance
- CWDM and DWDM Wavelengths
- Remote Monitoring via I2C Interface
- Exceptionally High SFDR Up to 115 dB/Hz 2/3
- Cooled DFB Lasers
- Laser Conforms to Class 1 Emission Level

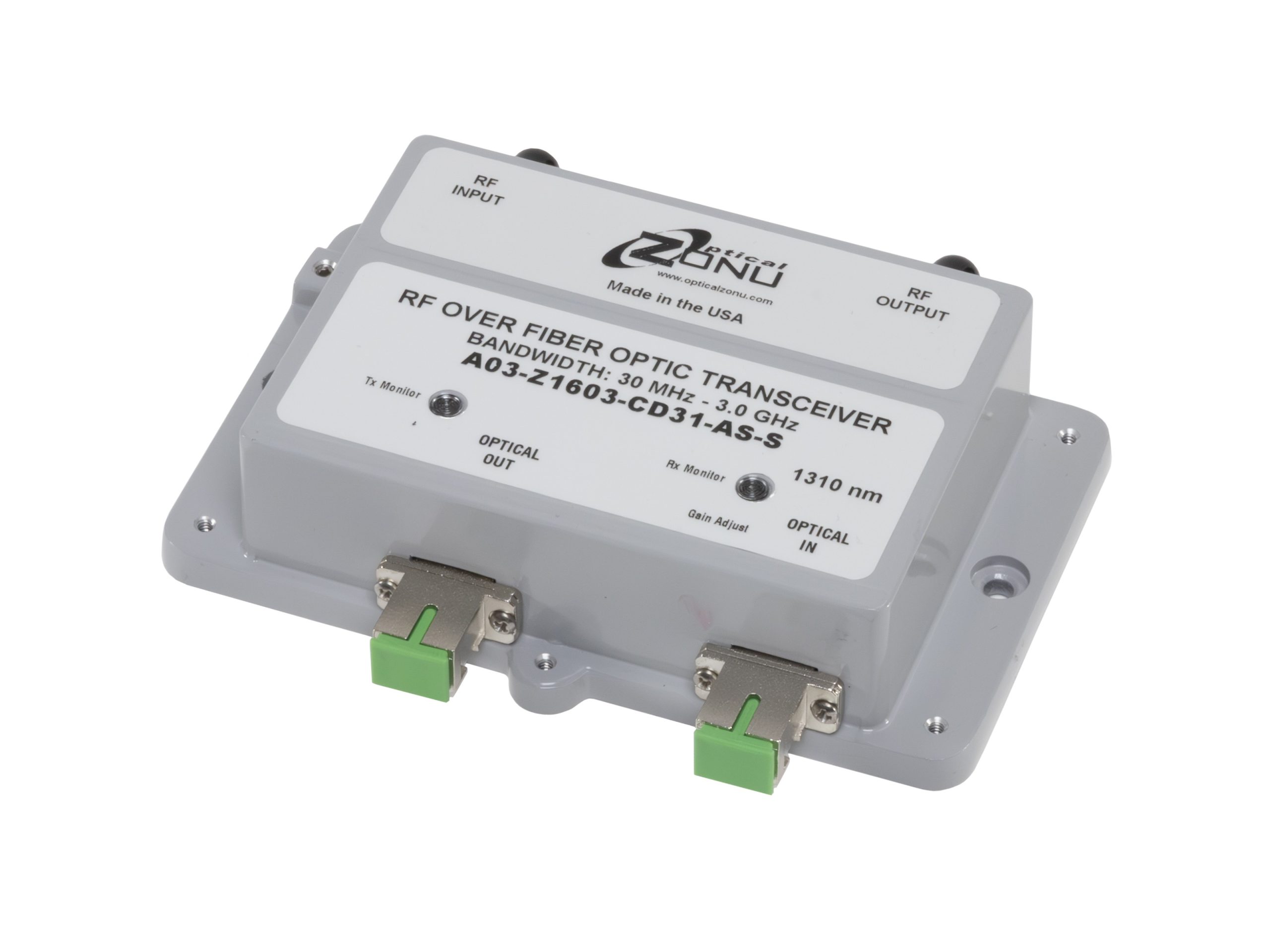

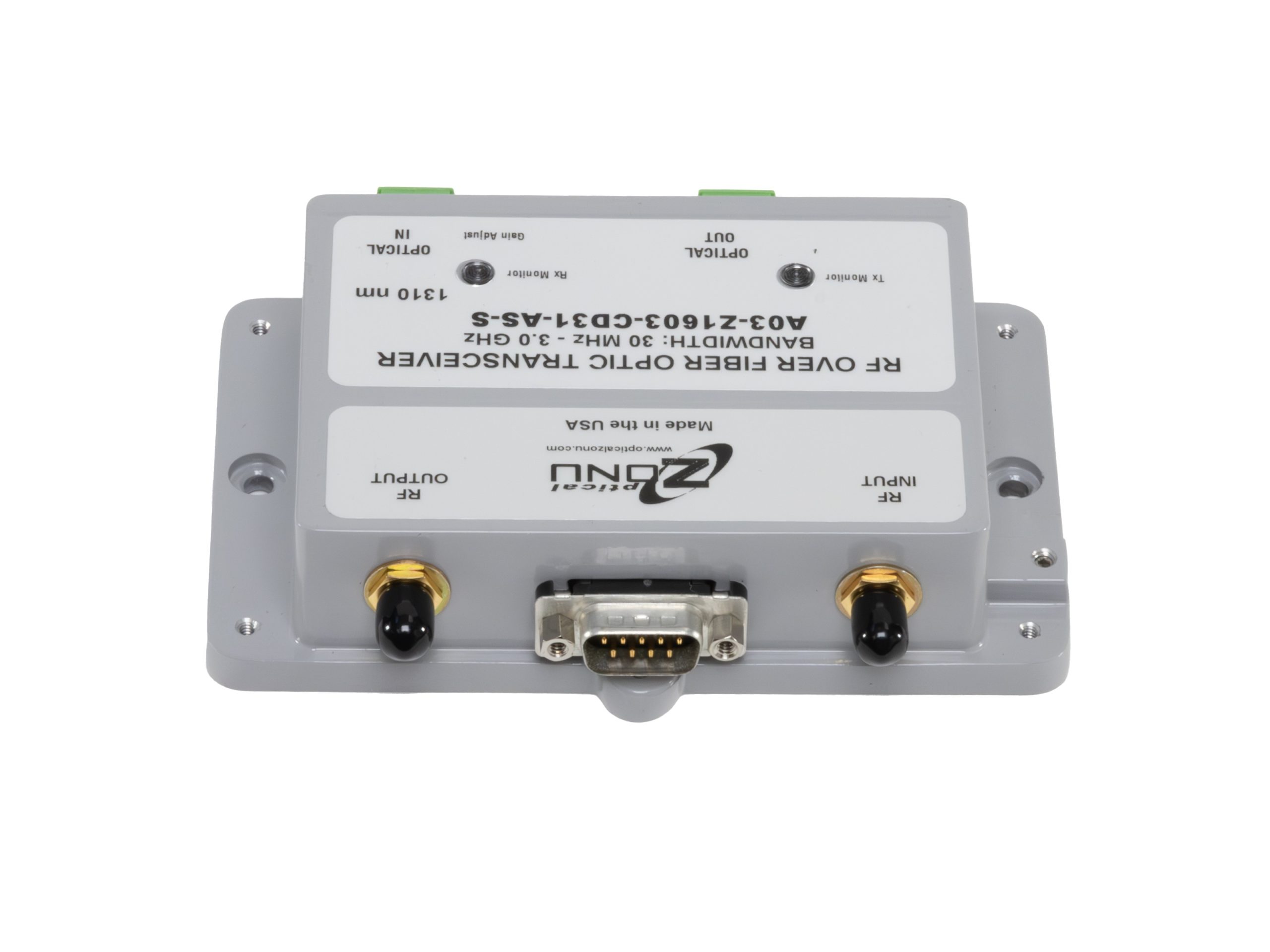

TLx Enclosure (TBox)
- IP-68 Rated Outdoor Enclosure
- 30 – 6000 MHz
- -40°C to +65°C Operating Temperature Range (1310 nm)
- CWDM and DWDM Wavelengths
- High SFDR
- Cooled and Uncooled DFB Lasers
S Box Enclosure
- 30 MHz to 6 GHz Fiber Optic Transport
- -20°C to +60°C Operating Temperature Range
- IP-68 Rated Outdoor Unit
- CWDM Wavelengths
- High SFDR
- HTTP Web UI, Managed RFoF GUI and SNMP v2 and v3 for Remote Monitoring
OZ9500 Chassis
- RF Signal Transport 30 MHz to 6 GHz
- 0°C to 50°C Ambient Operating Temperature Range
- Houses up to 8 “OZ5xx-style” Transmitters and/ or Receivers
- IRIG-B / 1PPS / TTL Signal Transport
- 10 – 200 MHz Low Phase Noise Reference Transport
- CWDM Wavelengths
- Remote Monitoring via SSH, HTML, Embedded GUI Application, SNMP v2 and v3 (Optional)
- Dual Redundant Universal AC Power Supply
- Fan Cooled
- 1RU, 19” x 15” Chassis
J-Chassis Single Slot Enclosure
- Accommodates any Single J-Chassis Plug-in Module
- May be Monitored via USB Connection to Managed RFoF (SNMP)
- Powered by 12V or 24/48V
J3U-Chassis Single Slot
- Accommodates any Single J3U (3RU) Chassis Plug-in Module
- May be Monitored via USB Connection to Managed RFoF (SNMP)
- Fan Cooled
- Powered by 12V or 24/48V
