Up to 3 GHz
Home / Modules / Form Factor / Small Modules
OZ101
- 30 MHz to 3 GHz
- -40°C to +70°C Operating Case Temperature Range (1310 nm)
- 50 Ohm SMA
- Small Size, 0.7” x 1.6” x 0.3”
- Weighs 18.7 Grams (includes fiber pigtail)
- I2C monitoring
- CWDM Wavelengths
- High SFDR
- +5V Supply Voltage
- Uncooled Isolated DFB Lasers
- 4 per slot in a J system within a J4 envelope
OZ201
- 30 MHz to 3 GHz
- -40°C to +70°C Operating Case Temperature Range (1310 nm)
- 50 Ohm SMA
- Enables 60 dB Dynamic Range links
- Small Size, 19mm x 106mm x 9mm
- Weighs 32 Grams
- Adjustable Transmitter and Receiver RF Gain (30 dB range each)
- Optional AGC in Transmitter and Receiver
- Control & Monitoring Interface via USB, I2C, or UART
- CWDM Wavelengths
- High SFDR
- +5V Supply Voltage
- Uncooled Isolated DFB Lasers
OZ510
- 30 MHz to 3 GHz RF Bandwidth
- -40°C to +70°C Operating Case Temperature Range (1310 nm)
- Small Size, 1.5” x 2.5” x 0.6”
- 50 Ohm SMA or SMB (75 Ohm Optional)
- Plug into a PCB
- CWDM Wavelengths
- High SFDR
- Uncooled Isolated DFB Lasers
OZ520
- 30 MHz to 3 GHz RF Bandwidth
- -40°C to +70°C Operating Case Temperature Range (1310 nm)
- Small Size, 1.5” x 2.5” x 0.6”
- SMA or SMB (75 Ohm Optional)
- Plugin into a PCB
- User RF gain adjust, transmitter & receiver, 30 dB range
- RF Power Monitor and AGC Optional
- I2C status and control
- CWDM Wavelengths
- High SFDR
- Uncooled Isolated DFB Lasers
OZ600
- 30 MHz to 3 GHz Transport, OZ600
- Dual Transmitter and receiver options
- CWDM Wavelengths
- GNSS/GPS Transport
- 10 – 200 MHz Low Phase Noise Transport, LPN
- 3 GHz Transport & Repeater, OZ600 Repeater
- Audio & Video RF Transport, DVB-T
OZ81x
- 30 MHz to 3 GHz Transport
- -20°C to +75°C Operating Temperature Range
- RS232 Serial Data Transport (optional)
- Optical AGC (optional)
- Dual Transmitter and receiver options
- High SFDR
- CWDM Wavelengths
- Uncooled DFB Lasers

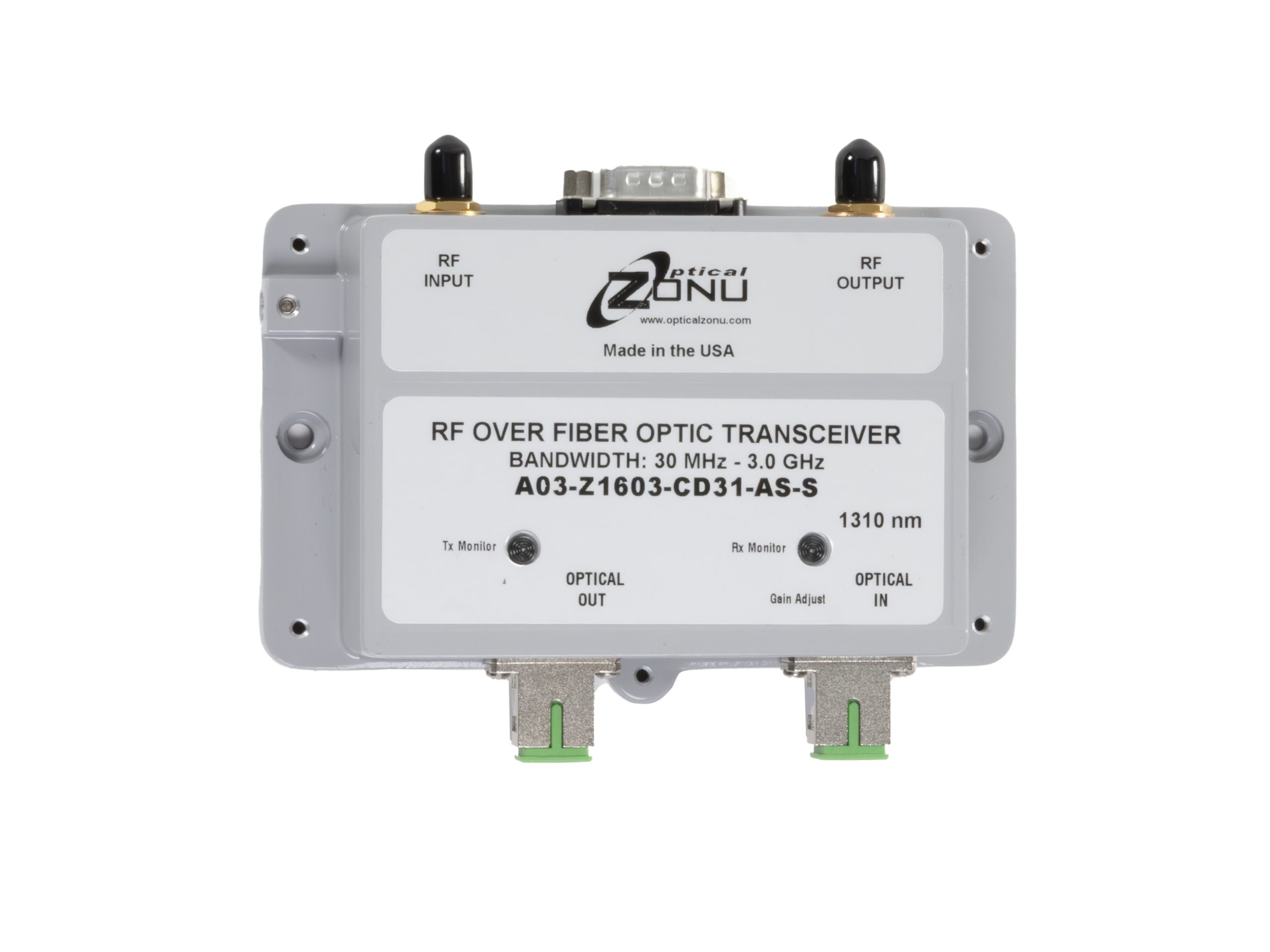

OZ16xx
- 30 MHz to 3 GHz (10 GHz Available)
- -40°C to +65°C Operating Temperature Range, Fixed RF Performance
- CWDM and DWDM Wavelengths
- Exceptionally High SFDR Up to 115 dB/Hz 2/3
- I2C Monitoring (optional)
- Cooled DFB Lasers
TLx Enclosure (TBox)
- IP-68 Rated Outdoor Enclosure
- Tx/Rx or Dual Tx or Dual Rx
- 3 GHz (9 GHz available) Bandwidth
- GNSS/GPS Transport
- Satellite Phone (Iridium) Transport
- -40°C to +65°C Operating Temperature Range (1310 nm)
- CWDM, DWDM Wavelengths
- High SFDR
- Cooled and Uncooled DFB Lasers
- 12V or -48V Supply Voltage
S Modules
- 30 MHz to 3 GHz Fiber Optic Transport
- Designed for L Band Antenna Remoting (eFiberSAT)
- -20°C to +60°C Operating Temperature Range
- IP-67 Rated Outdoor Unit
- CWDM Wavelengths
- High SFDR
- Low Phase Noise Reference Clock Distribution
- SSH CLI, HTTP Web UI, Managed RFoF GUI and SNMP v2 and v3 for Remote Monitoring
- Uncooled DFB Lasers
- See System Solutions eFiberSAT
OZ9500 Chassis
- RF Signal Transport 30 MHz to 3 GHz
- 0°C to 50°C Ambient Operating Temperature Range
- Houses up to 8 “OZ5xx-style” Transmitters and/ or Receivers
- IRIG-B / 1PPS / TTL Signal Transport
- 10 – 200 MHz Low Phase Noise Reference Transport
- 1310 nm, 1550 nm, CWDM Wavelengths
- Remote Monitoring via SSH, HTML, Embedded GUI Application, SNMP v2 and v3
- Dual Universal AC Power Supply
- 1RU, 19” x 15” Chassis
J-Chassis Single Slot
- Accommodates any Single J-Chassis Plug-in Module
- May be Monitored via USB Connection to Managed RFoF (SNMP)
- Powered by 12V or 24/48V
J3U-Chassis Single Slot
- Accommodates any Single J3U (3RU) Chassis Plug-in Module
- May be Monitored via USB Connection to Managed RFoF (SNMP)
- Fan Cooled
- Powered by 12V or 24/48V
